Stepping Motor >>>130BYG
  130BYG Hybrid Stepping Motor

   Step Angle：0.9/1.8 DEG

   Insulation Resistance：500V DC 100MΩ

   Insulation Intensity：500V AC 1 Minute

   Temperature Rise：65K

   Operating Temperature：-10~+55℃

   Insulation Level：B

空格Technical Paraneters:
Type
Step Angle
Phase
Voltage
Current
Inductance
Holding torgue
Mask Running Speed
Moment of Inerita
Shaft
Length
　
V
A
mH
N.m
kHz
kg.cm2
mm
130BYG2501
0.9/1.8
2
 110-220
6
7.3
27
>=20
33
Figure.1
177
130BYG2502
0.9/1.8
2
 110-220
7
9
40
>=15
48
Figure.1
230
130BYG2503
0.9/1.8
2
 110-220
7
12
50
>=12
60
Figure.2
270

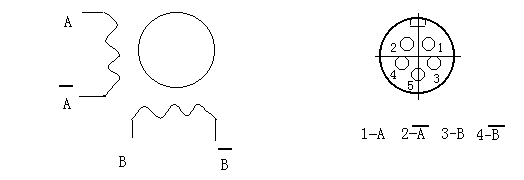

空格Wiring Diagram:

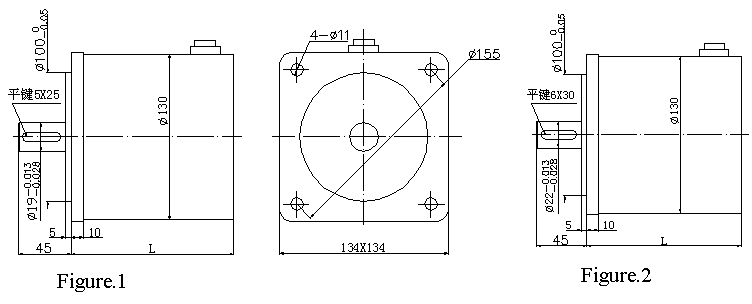

空格Figure Dimensions:

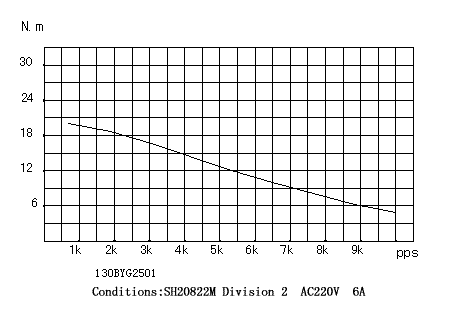

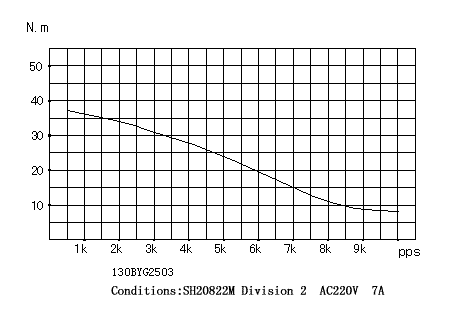

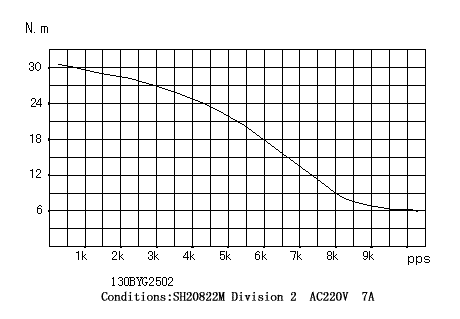

空格Torque-Speed Characteristic:

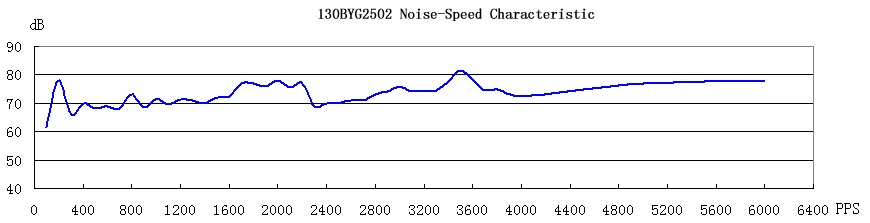

空格Noise-Speed Characteristic:

Conditions:SH20822M、 220AC 、7A、 2 Division

Ambient Noice:50dB

Distance:1M

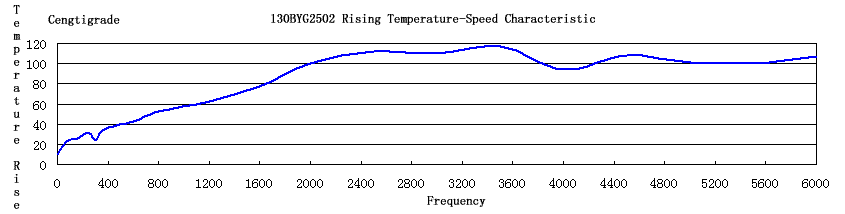

空格Rising Temperature-Speed characteristic:

Conditions：SH20822M、220VAC、7A、2 Division，Inductance：8.7mH

Operating Temperature：28Centigrade
