Stepping Motor >>>42BYGH Series
  42BYGH Hybrid Stepping Motor

   Step Angle：0.9/1.8 DEG

   Insulation Resistance：500V DC  100MΩ

   Insulation Intensity：500V AC 1 Minute

   Temperature Rise：65K

   Operating Temperature：-10~+55℃

   Insulation Level：B

Type
Phase
Voltage
Current
Resistance
Inductance
Holding torgue
Length
Moment of Inerita
Weight
Axis Length
Wiring Diagram
unit   V A Ω mH N.m mm Kg.cm Kg mm
42BYGH101 2 2.5 1.7 1.5 2.4 0.42 39 0.25 0.2 24 b
42BYGH102 2 12 0.5 24 28 0.4 39 0.25 0.2 24 b
42BYGH103 4 3.6 1.2 3 2.4 0.32 39 0.25 0.2 24 a
42BYGH107 4 12 0.4 30 22.3 0.28 39 0.25 0.2 24 a
42BYGH401 4 12 0.8 15 11.5 0.4 47 0.3 0.35 24 a
42BYGH402 2 3.6 1.2 3.0 4.3 0.42 47 0.3 0.35 24 b
42BYGH403 4 3.5 1.4 2.5 1.6 0.36 47 0.3 0.35 24

a

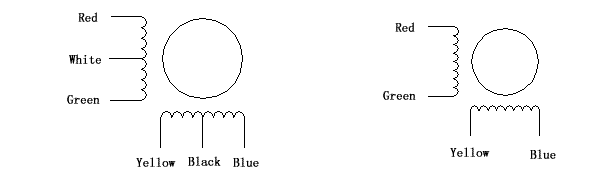

空格Wiring Diagram ：

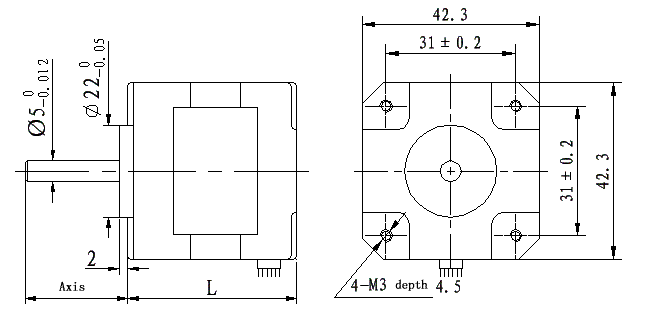

空格Figure Dimensions：

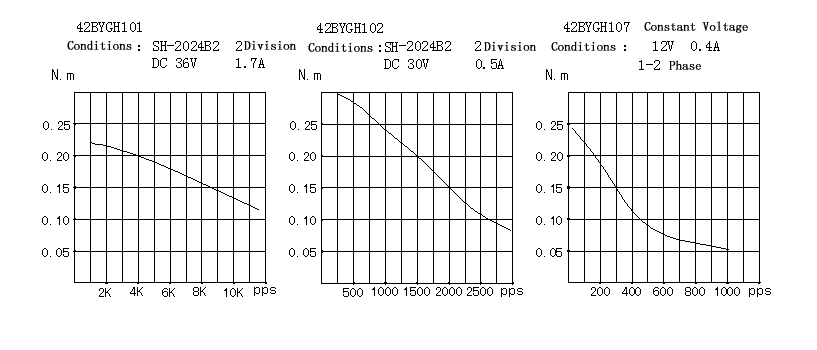

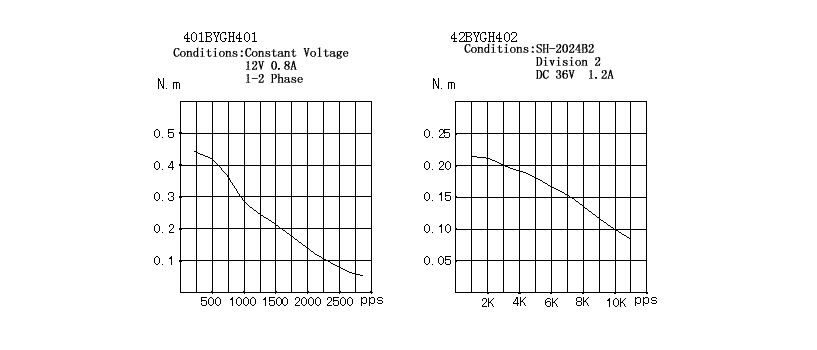

空格Torque-Speed Characteristic ：


 空格Noise-Speed Characteristic:

Conditions:SH2034D、24VDC、1.8A、Division 2
Ambient Noice：40dB
Test Distance：1m
