Stepping Motor >>>130BYG
  130BYG Three Phase Hybrid Stepping Motor

   Step Angle：0.6/1.2 DEG

   Insulation Resistance：500V DC 100MΩ

   Insulation Intensity：500V AC 1 Minute

   Temperature Rise：65K

   Operating Temperature：-10~+55℃

   Insulation Level：B

空格Technical Paraneters;
Type
Step Angle
Phase
Voltage
Current
Holding torgue
Mask Running Speed
Moment of Inerita
 Shaft
Length

　
V
A
N.m
kHz
kg.cm2

mm
130BYG3501
0.6
3
110-220
6
25
>=18
18
 Figure.1
177
130BYG3502
0.6
3
110-220
6
35
>=18
30
 Figure.1
230
130BYG3503
0.6
3
110-220
6
50
>=18
48
 Figure.2
282
空格Wiring Diagram;

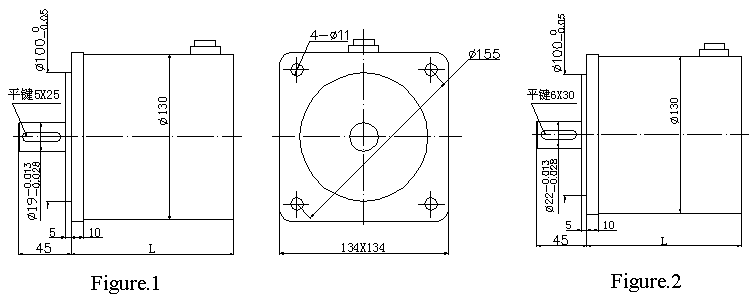

空格Figure Dimensions:
空格Torque-Speed Characteristic：




130BYG3501 Output Power Can be Over 600W


130BYG3502 Output Power Can be Over900W
